Soundstage and imaging describe related but different spatial experiences. Soundstage is the perceived size, shape, and distance of the auditory scene. Imaging is the precision and stability with which individual sounds occupy positions inside that scene. A product can sound wide but vague, narrow but precise, or both expansive and well defined. Keeping the terms separate leads to more useful product descriptions and gaming guidance.
Describe spatial performance across width, depth, height, center stability, separation, and positional precision instead of using wide as a universal score.
Soundstage describes the perceived space
Width describes how far the scene appears to extend left and right. Depth describes front-to-back layering. Height refers to perceived vertical placement. Externalization describes whether sounds appear outside the head rather than fixed inside it. These dimensions are shaped by the recording, channel cues, HRTF-related spectral information, fit, tuning, and acoustic design.
An IEM does not generate a physical stage around the listener. It presents binaural and stereo cues that the auditory system interprets as space. The visual arena used on a website should therefore be labeled as a perceptual illustration unless it is based on controlled listening data.
Imaging describes positional definition
Imaging asks whether a sound occupies a clear point or a vague area, whether it moves continuously across the scene, and whether the center image stays stable. In gaming, precise imaging can make directional movement easier to follow even when the overall stage is not extremely wide.
Channel matching, fit consistency, recording cues, and frequency balance all influence the result. A left-right level mismatch can pull the center image away from the middle, while excessive masking can make quieter positions harder to distinguish.
The auditory system uses several spatial cues
Interaural time differences help locate lower-frequency sounds to the left or right. Interaural level differences become important when the head shadows higher frequencies. Direction-dependent filtering by the outer ear contributes spectral cues for front-back and elevation judgments. Room reflections and movement provide additional information about distance and externalization.
IEM presentation interacts with these cues rather than replacing them. Individual anatomy and learned HRTFs mean spatial perception varies between listeners.
Stage size and precision form separate axes
A focused, precise presentation can be excellent for competitive play, studio edits, and vocal centering. An expansive, diffuse presentation can be immersive for ambient or live recordings. An expansive and precise presentation is often described as holographic, but it is not automatically better for every recording or listener.
Product pages should avoid a single soundstage score. Use qualitative labels and explain the listening context: focused, natural, expansive; diffuse, stable, or precise; shallow or layered.
| Presentation | What it feels like | Useful for |
|---|---|---|
| Focused + precise | Compact scene with clear positions | Competitive gaming, editing, vocals |
| Expansive + precise | Large scene with stable placement | Orchestral, live, cinematic gaming |
| Focused + diffuse | Close and atmospheric | Intimate recordings, relaxed listening |
| Expansive + diffuse | Broad and enveloping | Ambient music and environmental scale |
Tuning supports space but does not measure it
Controlled bass can reduce masking, smooth upper mids can preserve distance cues, and upper-frequency extension can support ambience and air. However, raising treble does not manufacture accurate space. It may simply make edges more obvious or create fatigue.
Open-back or highly ventilated acoustic designs may alter pressure, reflections, and the subjective sense of openness. The final result should still be evaluated through controlled listening, not inferred from a vent or a graph alone.
Use separate listening tests for each dimension
Use mono vocals to test center image, panned movement for left-right continuity, layered recordings for depth, and binaural or well-captured live material for externalization. Keep level and fit consistent. Compare more than one recording because spatial information is created at the production stage as well as the playback stage.
For product claims, document the tracks, listeners, scale, and uncertainty. A science-grounded visual should distinguish physical models, physiological mechanisms, psychoacoustic schematics, and product-specific perceptual results.
- Width is described separately from accuracy
- Depth and center image are included
- The recording and fit are controlled
- Tonal explanations avoid claiming direct causation
- Illustrations are labeled as conceptual unless measured
Kiwi Ears product references
These products are used only as concrete examples of architectures, tuning goals, and ownership considerations. They are not a ranked recommendation list. Verify current specifications, pricing, availability, and approved product language before publishing.
15.3 mm planar-magnetic in-ear monitor with detachable two-pin cable
$169.99
Product highlights
- 15.3mm Planar — Our largest planar driver
- N52 Magnets — Multi-layered, high output
- Wide Soundstage — Headphone-like scale
- Planar Bass — Tight, fast, controlled
- Airy Treble — Extended, sparkly, smooth
- Low Distortion — Clean across the range

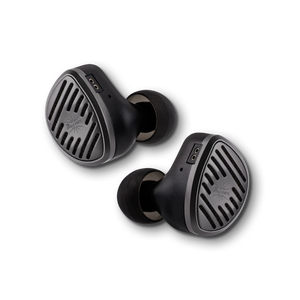

Seven-driver open-back quadbrid IEM with dynamic, BA, planar
$269.00
Product highlights
- 7 Drivers · 4 Types — DD + 4BA + Planar + PZT
- 5-Way Crossover — Precise frequency separation
- Neutral-bright — Clear vocals, forward treble
- Wide Soundstage — Open-back-like stage
- Strong Microdynamics — Subtle textures shine
- Beefy Bass — Impact with clarity
Product highlights
- 8 Balanced Armatures — Orchestra pedigree
- Warm-neutral — Mature, non-fatiguing
- BA Subwoofers — Tight, fast, textured bass
- Sweet Mids — Pronounced, delicate, lush
- Detail Retrieval — Rivals double the price
- Wide Stage — Airy, pinpoint imaging
Product highlights
- DLC Dynamic — Fast, impactful sub-bass
- Dual Knowles BA — Natural, resolving mids
- Planar Driver — Speed and detail
- PZT Bone Conductor — Sparkle and air
- Coherent U — Lively, non-fatiguing
- Studio Resolution — Punches above its price
Frequently asked questions
Is wider soundstage always better?
No. Wide presentation can be immersive, but precise imaging, stable center placement, and useful depth may matter more for many tasks.
Can an IEM sound outside the head?
It can produce a degree of externalization when the recording, tuning, fit, and listener cues support it, but the effect varies significantly between people.
Does open-back design guarantee a wide stage?
No. Venting and open construction can support openness, but tuning, driver behavior, geometry, fit, and recording cues still determine perception.
Sources and editorial notes
This is a base editorial draft prepared for internal revision. General principles are supported by the sources below. Product examples link to current official Kiwi Ears pages and should be rechecked immediately before publication.
- HEAD acoustics: Spatial Hearing Application Note (opens in a new tab)
- AES: Statistical Model of In-Ear Headphone Preference (opens in a new tab)
- Official product page: Kiwi Ears Aether (opens in a new tab)
- Official product page: Kiwi Ears Septet (opens in a new tab)
- Official product page: Kiwi Ears Orchestra Lite (opens in a new tab)
- Official product page: Kiwi Ears Quintet (opens in a new tab)
